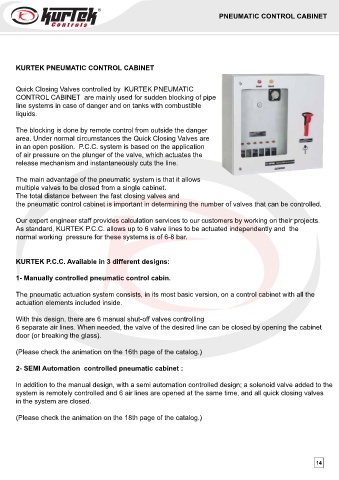

Page 14 - Kurtek Controls Catalog

PNEUMATIC CONTROL CABINET

KURTEK PNEUMATIC CONTROL CABINET

! " # ! $ # !
## # " % & " !
Quick Closing Valves controlled by KURTEK PNEUMATIC
CONTROL CABINET are mainly used for sudden blocking of pipe
line systems in case of danger and on tanks with combustible
liquids.

The blocking is done by remote control from outside the danger
area. Under normal circumstances the Quick Closing Valves are
'! ( & ) $ ! $! " )! ! $! (! $
in an open position. P.C.C. system is based on the application
) ! ) #( ! ) "! #
of air pressure on the plunger of the valve, which actuates the
# ( " (! $ !
release mechanism and instantaneously cuts the line.
$! $ # ! $! ! *$ &
# ! !
The main advantage of the pneumatic system is that it allows
multiple valves to be closed from a single cabinet.
The total distance between the fast closing valves and
the pneumatic control cabinet is important in determining the number of valves that can be controlled.
! ) "! # ( ) " (! + $ (#
! $! $(( ! $! $ # !
Our expert engineer staff provides calculation services to our customers by working on their projects.
$! %( ! "" $! #
As standard, KURTEK P.C.C. allows up to 6 valve lines to be actuated independently and the
! ( ! !
normal working pressure for these systems is of 6-8 bar.

KURTEK P.C.C. Available in 3 different designs:

) *$ & (! $ ! ) ) "! #
1- Manually controlled pneumatic control cabin.
$ ! " ) ! !
# $" $! !, ! " ! " &
The pneumatic actuation system consists, in its most basic version, on a control cabinet with all the
-$! $ ! .- / 0# ! -$! $ 1" (( ) .0- /
actuation elements included inside.
& ) ! . / 2 !# ! & .2 / 3 4 !
! .34 / ) ! 5 4 . 540/
With this design, there are 6 manual shut-off valves controlling
(! $
6 separate air lines. When needed, the valve of the desired line can be closed by opening the cabinet
door (or breaking the glass).

(Please check the animation on the 16th page of the catalog.)

2- SEMI Automation controlled pneumatic cabinet :
6 ! $ " $! ## # !
In addition to the manual design, with a semi automation controlled design; a solenoid valve added to the
! & $ ! & ## #
& ! ) $! %( ! 7
system is remotely controlled and 6 air lines are opened at the same time, and all quick closing valves
in the system are closed.

(Please check the animation on the 18th page of the catalog.)
